JPMX-301AProduct InformationProduct name: Combined busbar processing machine JP
LJMC-30A
Product Information

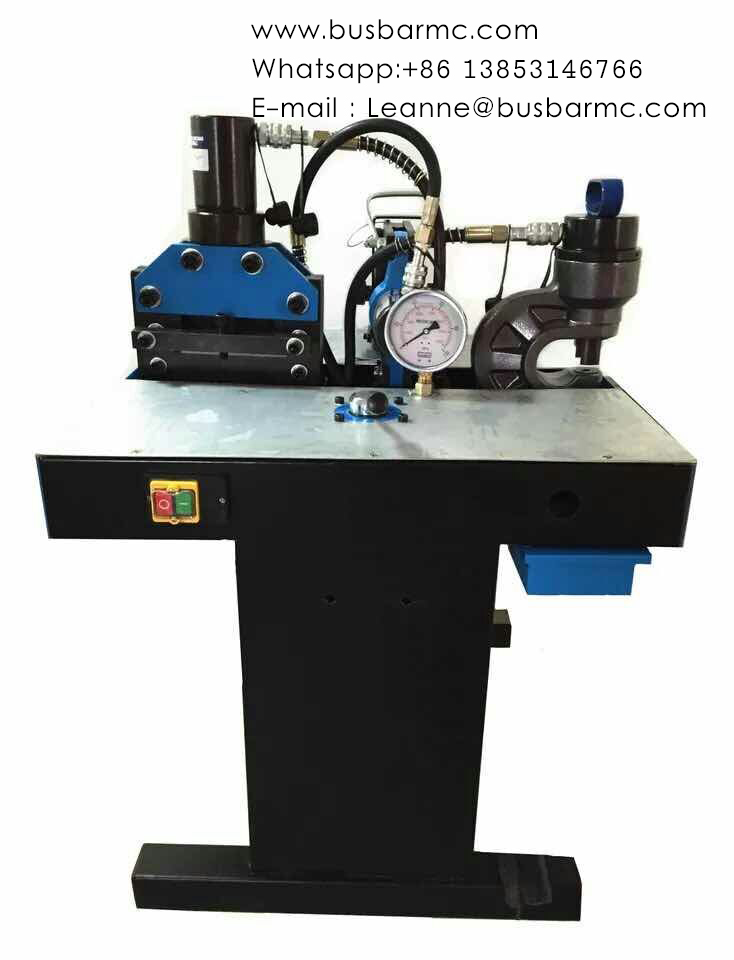

Product name: Combined busbar processing machine LJMC-30A for copper
Main features: 1. It can be used at any occasion.
2. Small volume and easy to move.
3. High production capacity and high work efficiency.
Product application: Power distribution boxes, transformer, switch canbinet.
Functions
LJMC-30A has three functions : punching , cutting , bending.
It is combined with three portable busbar processing machine.
Processing Samples
Our Factory
Business Partner
Our products sell well in Europe, North America, South America and Southeast Asia.
Our company is a partner of first-line brands such as ABB, Siemens and Schneider.
Techinical Parameters
| Item | Model |
| LJMC-30A | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 150 |
| Max. processing thickness (mm) | 10 |
| Out dimension (mm) | 690×700×1060 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 760×770×1320 |
| Machine weight (kg) | 170 |
| Item | Model |
| LJMC-30B | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 200 |
| Max. processing thickness (mm) | 12 |
| Out dimension (mm) | 900×700×1160 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 990×760×1320 |
| Machine weight (kg) | 205 |
